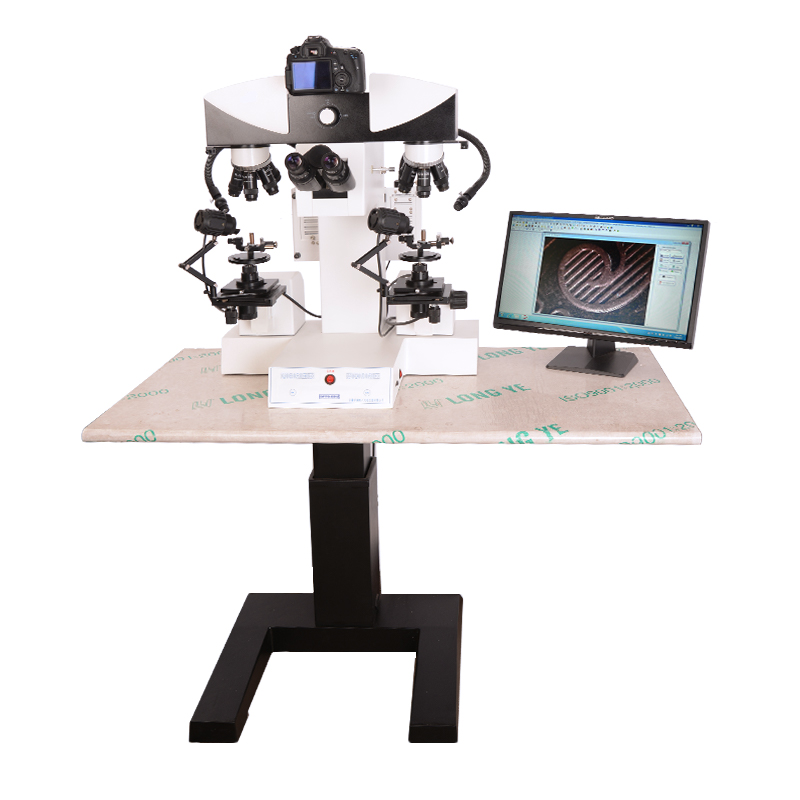

A18.1830 Motorized Digital Forensic Comparison Microscope

  • Total Magnification 2x~240x With 6 Holes Nosepiece With Motorized Working Table
  • Left/Right, Split, Overlapping Image For Forensic Comparison View
  • Halogen 50W, LED 5W, Polarizing, Coaxial, UV Light Source
  • Separation Line Adjust & Magnification Correcting System
  • Motorized Square & Round Working Stage Joint Moving Up/Down

Products Details

A18.1830 Motorized Digital Forensic Comparison Microscope,With Motorized Working Table
Head0-45° Titable Bionocular Head, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable
EyepieceWF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Nosepiece6 Hole Click Stop Nosepiece
ObjectiveLWD Infinity Plan Achromatic Objective 0.5x, 1x, 1.5x, 2x, 4x,6x
Auxiliary Lens 0.4x, 2.0x
Working Distance101mm
View FieldDia. 2.3~62mm
Magnification CorrectingMagnification Correction System, With Correcting Lens
Separation Line AdjustingSeperation Line Adjust System In Back, With Special Designed Adjust Driver
Working StageSquare Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Light Source12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable2pcs
5W LED Cold Light, High Brightness, Brightness Adjustable2pcs
Coaxial Light Lens, To Observe In Deep Hole, Or Smooth Object Surface2pcs
Polarizing Light Lens, To Eliminate Flare Lights And Dazzling Lights2pcs
Transmit Bottom Light (Built-in Working Stage)
Ultraviolet Light Lens2pcs
Filters: Red, Blue, Yellow, Green2pcs Each Color
Adapter0.5x CCD Adapter For Digital Camera,1pc
Front View Photo Adapter 2.5X For SLR Digital Camera (Nikon And Canon)
CCD CameraBuilt-in 3.0M High Resolution Color CCD Camera,USB 2.0 Output,2048*1536 Pixels,Pixel Size 3.2*3.2μm
SoftwareProfessional Forensic Image Analysis Software
Motorized/Manual Viewfield Changeover Full /Split /Overlapping Image
Motorized/Manual Control Working Stage X/Y/Z 3D Movement
Motorized/Manual Control Round Working Stage Rotation +/- Direction
Motorized/Manual Control To Change Objective Magnification
Working TableA18.1830 Include Motorized Working Table, Size 60*120mm, Height 65mm, Motorized Up/Down 160mm
Power80~240V Wide Range Voltage
Bullet HolderStandard Bullet Holder 2 Sets,Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
DimensionInstrument Size 40*60*72cm
Optional Accessories
Light Source150W Cold Light Source, With Optical Fiber & Light CollectorA56.1821
Bullet HolderMotorized Bullet Holder 1 SetA54.1813
