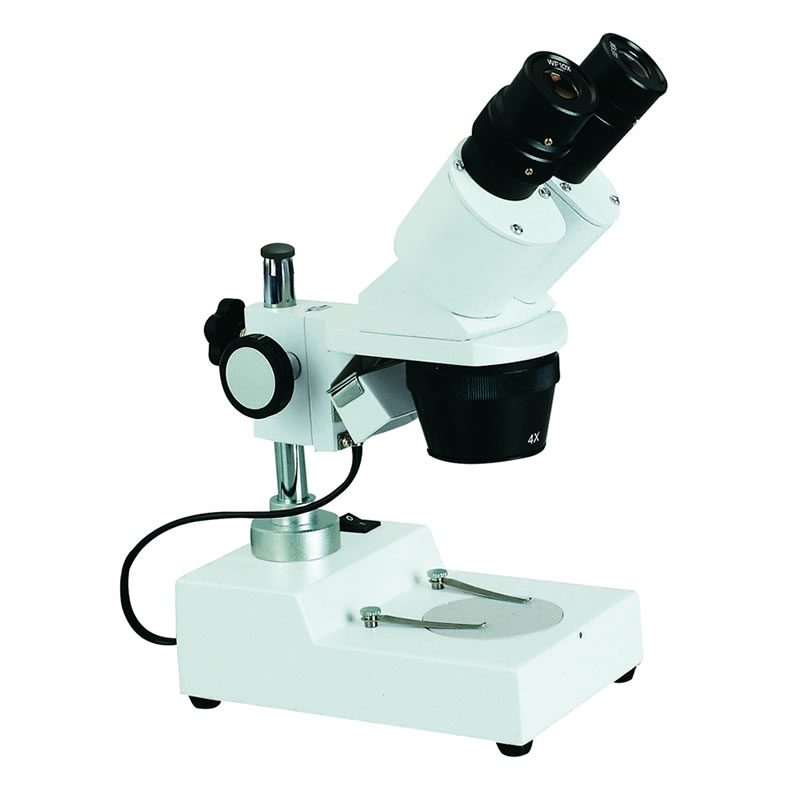

A22.1206 Specification
Model	Eyepiece	Objective	Plate	Illuminator
3A	WF10X	Rotated 1x-21x-3x 2x-4x	White/Black	No
3B	WF10X	White/Black	Incident
3C	WF10X	Frosted Glass	Incident & Transmitted
Optical Accessies
Eyepiece	WF5X	A51.1221-05
WF10X	A51.1221-10
WF15X	A51.1221-15
WF20X	A51.1221-20
Technical Data
Objective Eyepiece Working Distance (mm) 5X 10X 15X 20X Magnification Field of View (mm) Magnification Field of View (mm) Magnification Field of View (mm) Magnification Field of View (mm) 1X 5X 20.0 10X 20.0 15X 15.0 20X 10.0 57 2X 10X 10.0 20X 10.0 30X 7.5 40X 6.5 80 3X 15X 7.0 30X 6.7 45X 5.0 60X 4.3 61 4X 20X 5.0 40X 5.0 60X 3.7 80X 3.2 57 6X 30X 4.0 60X 3.3 90X 2.5 120X 2.1 66
