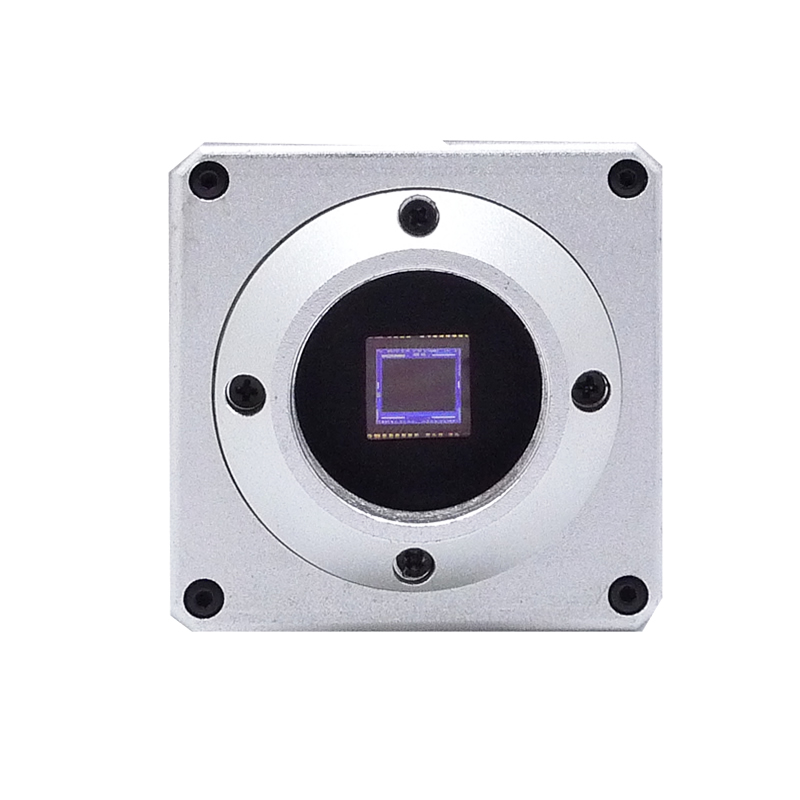

| A59.3516 Digital Camera |
|---|
| Senser | SONY ICX687AQA, 2.83MP |
| Resolution | 1940*1460@25, 1080@30fps |
| Pixel Size | 3.69um*3.69um |
| Data Output | 16 Bits, YUV422 |
| Data Format | YUV422,YUYV |
| Partial Image | ROI |
| Image Processing | GAMMA,LUT, Aaturation, Acutance |
| Eletronic Shutter(us) | 25fps:10-40000,30fps:10-33000,step:1;manual/auto |
| Gain(db) | 0-36,step:0.1;manual/auto |
| White Balance(db) | 0-12,step:0.1;manual/auto |
| Gamma | 0.5-4.00;manual/auto |
| Digial Interface | USB 3.0 |
| GPIO | 8pin, HIROSE HR25:PWR,1XOPI,1XOPO,BIOX2 ;IO support mapping |
| Trigger | External trigger/software trigger |
| Power | DC5V,<4.5W, GPIO/USB |
| Len Interface | C-mount |
| Camera Control | Drive Mode;under drive-free, low transmission |
| Temperature | 0-50 |
