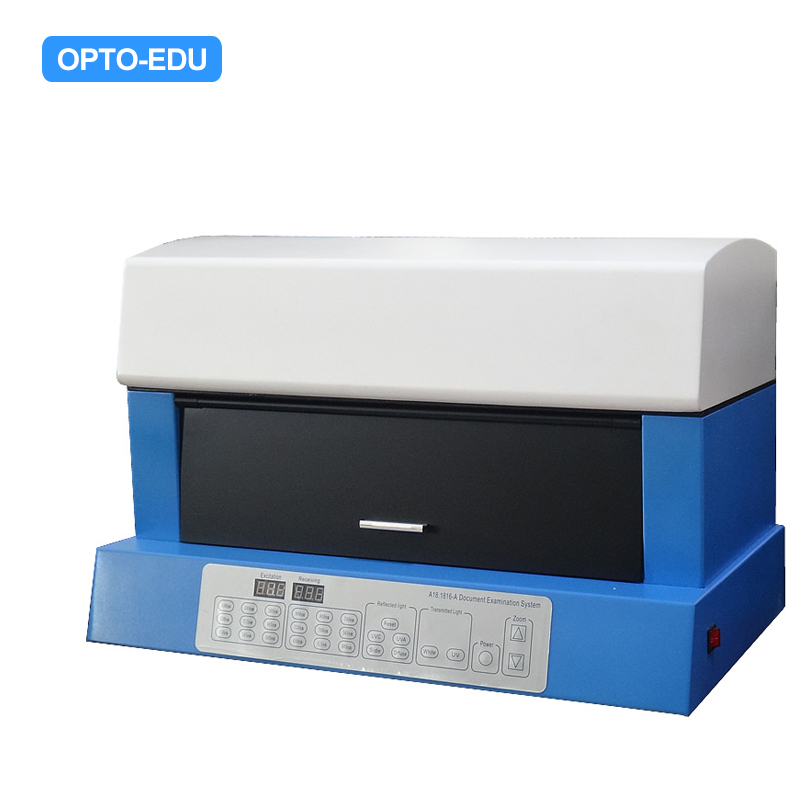

A18.1816-A Questioned Document Examination Analyzer

  • Magnification 1~30x Motorized Zoom Control
  • 1/3" CCD 800 Lines Digital Camera
  • Transmit & Reflect All Kinds Light Source
  • Exciting Filter 9 Bands, Receiving Filter 9 Bands
  • Incl. Software+Laptop, Wooden Packing
  • Minimum order quantity:1 piece

Products Details

A18.1816 Questioned Document Examination Analyzer
A18.1816 Questioned Document Examination Analyzer is an ideal tool to inspect, observe and compare many kinds of objects, evidences including:                                                                                                                                  --All kind of questioned documents: Used of different kinds of writing instruments, by adding, altering, conceal, forgery and other methods of fade contract, IOUs, real estate contracts, invoices, bills of exchange, checks, bills of lading, passports and soon.    --Various fluorescent encryption securities: checks, stocks, credit cards, stamps and special trademarks.                                                                                                                            --Identify cards, resident identify cards, temporary residence permits, etc.  --Currency: US Dollars, H.K. Dollars, RMB, etc.
Light Source System Main Light Source : 1x 24V/150W Halogen Lamp, With Cooling Fan, Focusing Lens, And Heat-Resistance Glass Cover
UVC: Short-Wave Ultraviolet Light 254nm, 1x10W
UVA: Long-Wave Ultraviolet Light 365nm, 1x10W
Upper Visible Side Light: 1x50W, With Lamp Holder Which Can Adjust Position And Angle Freely, Used To Check Indentation
Transmitted White Light 2x20W
Excitation Wavelength: 000nm,365nm,450nm,465nm,515nm,530nm,565nm,580nm,900nm
Receiving Filter: 000nm,415nm,450nm,565nm,700nm,720nm,740nm,800nm,900nm
Video Camera System High Sensitive, High Resolution 1/3” CCD Color Digital Camera, 650 Lines, Sensitivity 0.001 Lux, Especially Sensitive To Near-Infrared And Visible Spectral Bands Light Source.
Electrical Zoom Lens, Aperture 1.2, Zoom Ranges 1~30x
Function Fluorescent Light Source With Multi Excitation And Receiving Filter Combinations,Can Exam And Compare The Different Inks Used On Documents
Reflect Light And Receiving Filter Combination, Can Exam The Reflection And Absorption Of Different Wavelengths On Different Inks.
Reflect Light And Receiving Filter Combination, Can Exam The Transmission Of Different Wavelength Infrared Light On The Different Inks.
Transmit Light And Receiving Filter Combination, Can Exam The Transmission Of Different Wavelength Infrared Light On The Different Inks
Reflect Side Light Can Exam The Scratch, Cut Marks On documents.
Transmit Light Can Illuminate From The Bottom Side To Exam The Scratch, Cut Marks On Documents.

Samples to choose light source according to different objects.
Objects Light Source Excitation Receiving Exam
Distinguish Altered Or Added Text By Different Kinds Of Ink Excitation 485-550 nm 700-900 nm Alter
Natural Subside Text On Thermal Paper, Carbon Paper Excitation 480-550 nm 700-740 nm Subside
Phosphor Fingerprint Excitation 480-550 nm 700-740 nm Fluorescent
Multilayer Indentation Reflected Light _ Side 000nm 900nm Indentation
Text On The Black Cloth Reflected Light _ Side 000nm 900nm Covered Text
Text In The Kraftpaper Envelopes Transmitted Light _ UV 000nm 900nm Transmit
Correction Fluid Transmitted Light _ UV 000nm 900nm Alter
Security Trademark UVC 000nm 000nm Real/False
Currency Fluorescent UVA 000nm 000nm Fluorescent
