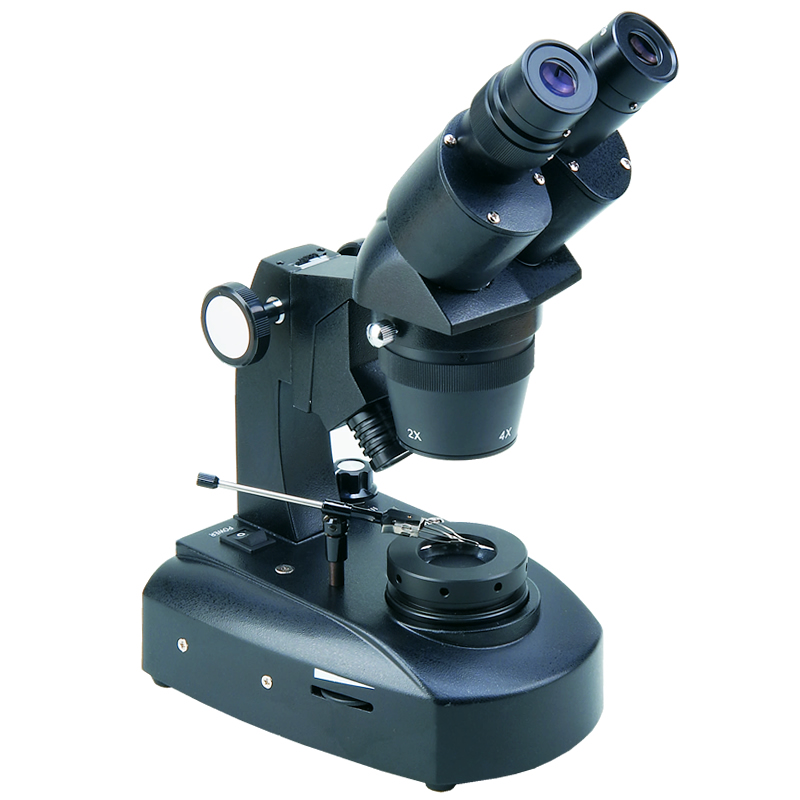

| A24.1201 Jewery Microscope | ||
| Head | Inclined Binocular Head,360° Rotatable | |
| Eyepiece | WF10x/20mm | |
| Objective | 2x/4x Standard, 1x/3x. 1x/2x Optional | |
| Incident Light | Halogen Lamp 12V/10W, Brightness Adjustable | |
| Transmit Light | Halogen Lamp 12V/10W, Brightness Adjustable | |
| Working Distance | 90mm | |
| Working Stage | Jewellery Tweezer | |
| Dark Field Working Stage, With Iris Diaphram | ||
| Optional Accessories | ||
| Eyepiece | WF5x/18mm | E51.1221-05 |
| WF15x/15mm | E51.1221-15 | |
| WF20x/10mm | E51.1221-20 | |
| Optical Data Sheet | ||
| Objetive | Working Distance | View Field |
| 1x | 75mm | 20mm |
| 2x | 90mm | 10mm |
| 3x | 69mm | 7.5mm |
| 4x | 70mm | 5mm |
