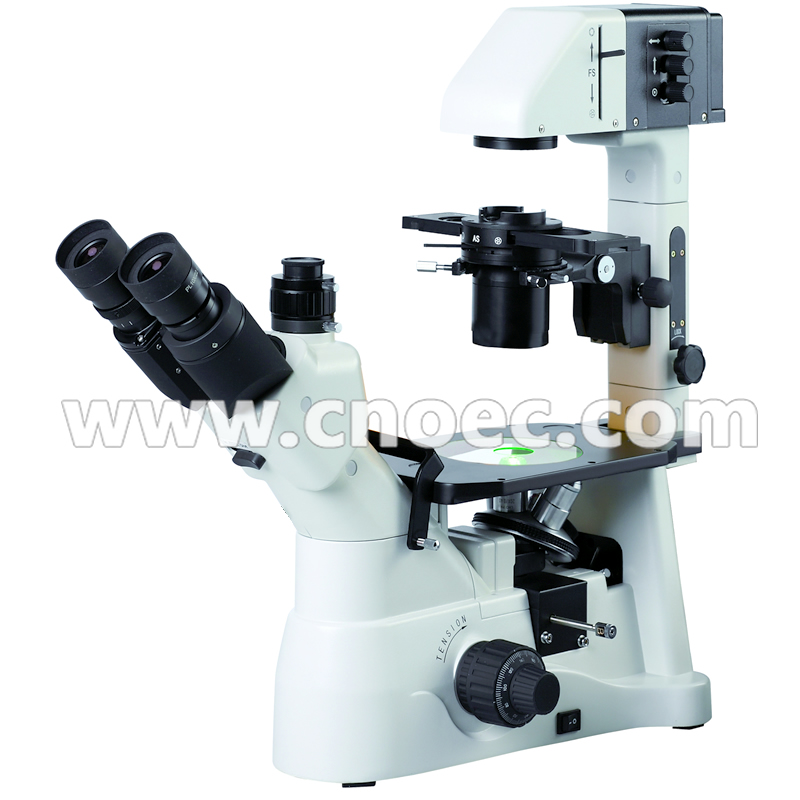

A14.0900-B Inverted Microscope, Kohler Illumination

  • Designed for cell culture observation, to get details of cell growing process, internal spontaneous fluorescence phenomenon, living cell fluorescence transfection, protein transfer and etc.
  • Color corrected infinity system (CSIS), excellent optical performance and great image
  • Application of high-contrast and low chromatic phase contrast observation, access to detailed examination of internal structure of the cells.
  • Well designed body structure, steady and reliable and better aseismatic performance.
  • Kohler Illumination

Products Details

未标题-1_01 未标题-1_03 未标题-1_05 未标题-1_07 未标题-1_09 未标题-1_11

Series Magnification N.A. W.D. F.N. Cover Glass Thickness Immersion Spring
Lplan Series(PH) Lplan4x 0.1 22 22 1.2 / /
Lplan10x 0.25 7.94 22 1.2 / /
Lplan PH10x 0.25 7.94 22 1.2 / /
Lplan20x 0.4 7.66 22 1.2 / /
Lplan PH20x 0.4 7.66 22 1.2 / /
Lplan40x 0.6 3.71 22 1.2 / /
Lplan PH40x 0.6 3.71 22 1.2 / /

A14.0900 Inverted Microscope A B
Optical System Infinity Color Corrected Optical System
Head Binocular Head
Trinocular Head, Light Split Switch E100:P0/E80:P20
Gemel Viewing Head, 45 Degree Inclined, Interpupillary Distance 54-75mm, One eyepiece tube with ±5 Diopter Adjustment,
Eyepiece PL10x/22mm, High Eyepoint, Wide Field
PL15x/16mm, High Eyepoint, Wide Field
Nosepiece Reversed Revolving Quintuple Nosepiece
Objective Long Working Distance Infinity Plan Achromatic Objectives LWDPL 4x/0.10, W.D.=22mm
LWDPL 10x/0.25, W.D.=7.94mm
LWDPL 20x/0.40, W.D.=7.66mm
LWDPL 40x/0.60, W.D.=3.72mm
LWD Infinity Plan Phase Contrast Objectives LWDPL 10x/0.25, W.D.=7.94mm
LWDPL 20x/0.40, W.D.=7.66mm
LWDPL 40x/0.60, W.D.=3.71mm
Stage Fixed Stage Size 250*160mm, Slider Clips
Glass Plate
Metal Plate
Petri Dish Holder, Dia.35mm
Movable Ruler, Travel  Range 120x78mm
Extension Plate
Focusing Coaxial Coarse & Fine Focusing System, Working Distance Of Every Circle: 38mm/Coarse Focus, 0.2mm/ Fine Focus, Minimal Read 0.002mm/,With Tension Adjustment, With Safty Stop
Condenser N.A.0.3 Kohler Illumination Condenser, with Phase Adjustable Slide Plate, Long Working Distance 72mm. The Whole Set Can Be Rotated Down
N.A.0.5 condenser for option, dismountable
Phase Contrast Phase Contrast Plug-board for 10x-40x, Center Adjustable
Centering Telescope Dia. 30mm
Filter Dia.45mm Green Interference Filter
Dia.45mm Color Temperature Change Filter
Dia.45mm Infrared Eliminate Filter
Dia.45mm Rubidium Glass Filter
Light Kohler Illumination, With Iris Aperture and Field Diaphragm, 6V/30W Halogen Bulb, Center And Focus Adjustable, Brightness Adjustable
Photo Adapter Photo Tube(with PK adaptor), 3.2x Lens
Video Adapter 0.5x/0.67x C Mount Adaptor
Power Wide Voltage 90-240V
